12V High Power LED Module 2.5W Warm White IP65 LED Module for Light Box & Illuminated Signs Australia Stock

【1LED】【2.5W】【Warm White 3000K】【IP65】【45x30x15mm】【100pcs/bag】 | DC12V 、3030SMD 、40*15° Beam Angle、 Easy Install . In Stock Au Warehouse. Fast Delivery in 1-2days. Trade/Wholesale Available. Bulk Trade Pricing. Local Support & Returns.
ITEM NO: DV-LSWM-1S3030-X-12-40P

$ 86.00/bag Excl.GST

In stock

1 - 4	$ 86.00/bag
5 +	$ 78.00/bag

10 in stock

ADD TO CART

Add to wishlist

Add to compare

Product Introduction

Product Description

This LED Edge light Module is designed for professional 80-120mm thickness double side light box applications outdoor use, IP65.

Suitable for channel letters, advertising signs, displays and commercial signage projects.

The high brightness LED Sign Module provides uniform illumination with low power consumption and long service life.

Ideal for sign makers, advertising companies and LED module wholesale projects in Australia.

Application

Light Box Signage

Channel Letter Signs

Retail Store Signage

Advertising Displays

Backlit Signs

Commercial Signage Projects

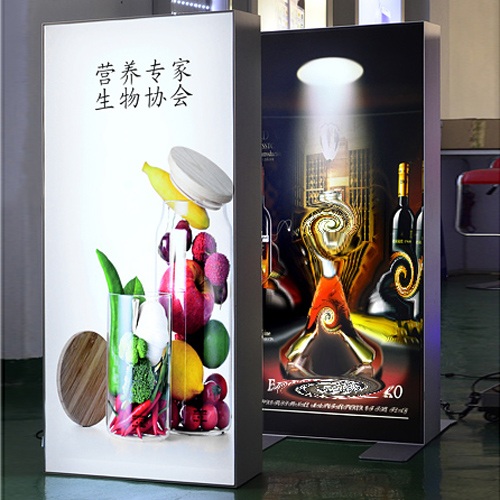

12V 3030 warm white 3000k LED module 45x30x15mm for slim light box backlighting.

Technical Specification

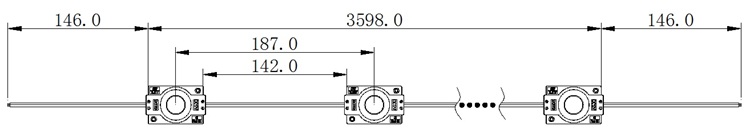

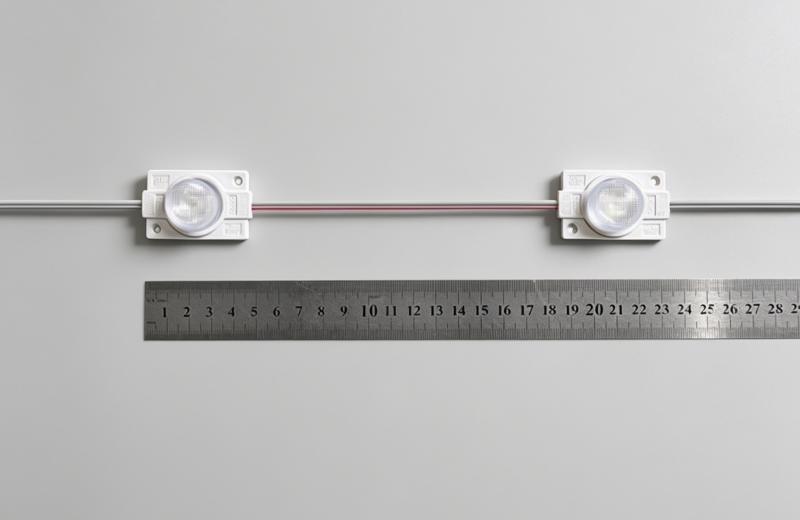

Wiring layout for 3000K 12V 3030 LED modules with 187mm center distance.

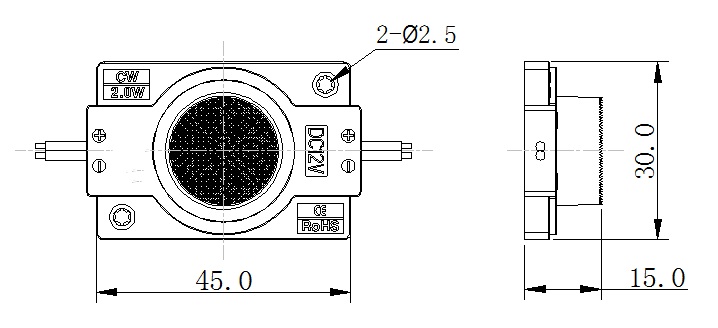

Single unit dimension of 12V 3030 3000K LED module 45x30x15mm.

Dimension: L x W x H: 45x30x15mm

LEDs Per module: 1led 3030

Operating temperature: -25℃ to +60℃

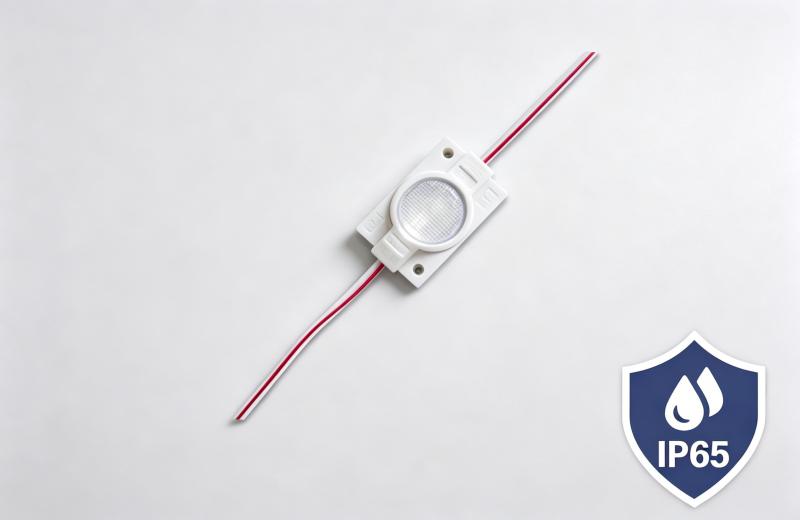

Protection class: IP65

Life rating: >50,000hours

Storage: at <50℃ambient

Fastening: Sticker or Screw

Color temperature	3000K
Standard Deviation Of color matching	<3sdcm
Voltage	DC12V
Power/Module(w)	2.5W
Lumen/module	275lm
Efficiency(lm/w)	110lm/w

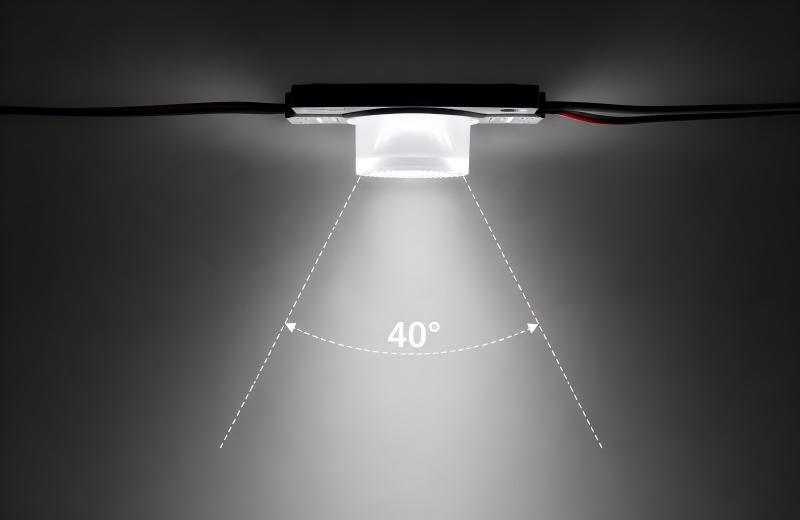

Beam Angle	40x15°
Driving System	Constant voltage transformer
Max QTY in series	20pcs
Warranty	5years
Packaging	100modules per bag

Power Supply Capacity: 12V DC

Watts of power supply	LED module quantity
XLG-75-12(12V,60W Power supply)	19pcs
XLG-100-12(12V,96W Power supply)	30pcs
XLG-150-12(12V,150W Power supply)	48pcs
XLG-200-12(12V,192W Power supply)	61pcs
XLG-320-12(12V,216W Power supply)	69pcs
ELG-300-12(12V,264W Power supply)	84pcs
HLG-320H-12(12V,264W Power supply)	84pcs

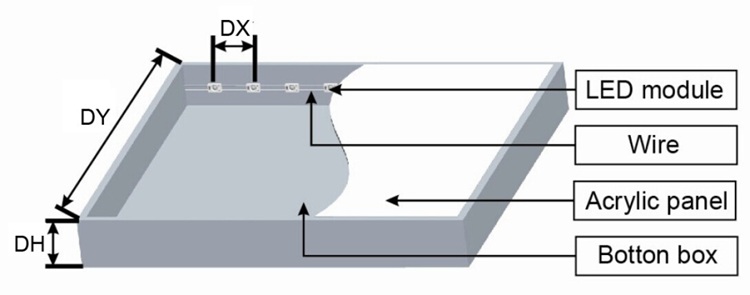

Installation depth and spacing parameters for 3000K 12V 3030 modules.

DH-Box thickness

DX-LEDs horizontal distance

DY-LEDs vertical distance

Item	Light box depth dh (mm)	Module Horizontal center distance dx(mm)	Module vertical center distance dy(mm)	Module layout density (pcs/m²)	Surface illumination (Lux)
DV-LSWM-1S3030-X-12-40P	150	80	1500	24	5820

Remarks: The Panel is 3mm acrylic board,60% transmittance.
